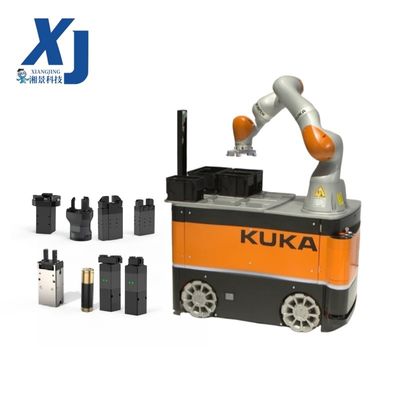

OnRobot Robotiq DH Robotics Gripper Lightweight Robots KUKA LBR IIWA 7 Axis Palletizing Packaging Collaborative Robot

OnRobot Robotiq DH Robotics Gripper Lightweight Robots KUKA LBR IIWA 7 Axis Palletizing Packaging Collaborative Robot

MOQ: 1
Prezzo: US $18000.00 - 20000.00/
imballaggio standard: Protezione rigorosa
Periodo di consegna: 90-150 giorni
Metodo di pagamento: T/t
Capacità di approvvigionamento: 500 unità all'anno
Informazioni dettagliate
Marca
KUKA
Numero di modello
LBR iiwa
Peso (kg):
30
carico utile nominale:
14 kg/7 kg
Portata:
800mm - 820mm
Ripetibilità di posa:
± 0,15 mm
Posizione dell'impianto:
Pavimento, soffitto, parete
Valutazione della protezione:
IP54
Precisione della coppia specifica per asse:
± 2%
Quantità di ordine minimo:
1
Prezzo:
US $18000.00 - 20000.00/
Imballaggi particolari:
Protezione rigorosa
Tempi di consegna:
90-150 giorni
Termini di pagamento:
T/t
Capacità di alimentazione:
500 unità all'anno
Descrizione del prodotto

Product Overview

The KUKA LBR iiwa Collaborative Robot is a pioneering 7-axis cobot designed for safe, intuitive human-robot interaction in dynamic production environments. With integrated torque sensors in all joints, it detects contact and responds instantly, enabling barrier-free collaboration without safety fencing. Available in 7 kg and 14 kg payload variants, the LBR iiwa offers 800 mm or 820 mm reach for tasks like assembly, machine tending, and quality inspection. Powered by KUKA Sunrise.OS, it supports easy programming via lead-through teaching and integrates with Industry 4.0 systems, making it ideal for automotive, electronics, and research applications.

Key Features

  • Torque Sensing Safety: 7 integrated sensors detect collisions and adjust force for safe operation.
  • 7-Axis Flexibility: Human-like redundancy for intuitive movements and obstacle avoidance.
  • Lead-Through Programming: Hand-guide the robot to teach paths without coding.
  • Sunrise.OS Software: User-friendly interface with drag-and-drop programming.
  • Lightweight Design: Weighs 23 kg (7 kg model) for easy mobility.
  • High Precision: ±0.1 mm repeatability for delicate tasks.
  • Modular End-Effectors: Compatible with grippers, tools, and sensors.
  • IP54 Protection: Dust and splash resistant for industrial use.

Technical Specifications

td>Sunrise.OS
Parameter 7 kg Model 14 kg Model
Payload 7 kg 14 kg
Reach 800 mm 820 mm
Degrees of Freedom 7 7
Repeatability ±0.1 mm ±0.1 mm
Maximum Speed 1 m/s 1 m/s
Weight 23 kg 29 kg
Protection Rating IP54 IP54
Operating Temperature 0°C to 45°C 0°C to 45°C
Controller Sunrise.OS
Certifications ISO 10218-1, CE ISO 10218-1, CE

Applications

The KUKA LBR iiwa Collaborative Robot is suited for safe, flexible automation tasks:

  • Assembly: Precise part insertion in electronics manufacturing.
  • Machine Tending: Loading/unloading CNC machines without barriers.
  • Quality Inspection: Force-sensitive scanning and testing.
  • Research & Development: Prototyping and human-robot interaction studies.
  • Packaging: Gentle handling of fragile products.

Frequently Asked Questions

How does the LBR iiwa ensure safety?

Torque sensors in all joints detect contact and stop movement instantly.

What is the difference between 7 kg and 14 kg models?

The 14 kg model has a higher payload and slightly longer reach for heavier tasks.

Is programming intuitive?

Yes, lead-through teaching allows hand-guiding the robot to learn paths.

What is the robot's weight?

23 kg (7 kg model), making it easy to move and install.

Can it be used outdoors?

IP54 protection suits indoor industrial use; optional covers for light outdoor.

Contact Us

For more information about the KUKA LBR iiwa Collaborative Robot, pricing, or to request a demo, contact our team:
